JINDAL’S Mica Capacitors have been carefully designed and manufactured using best Indian muscovite Mica plates as Dielectric and with adequate safety margins to provide maximum capacitance in the smallest volume with excellent mechanical, electrical and environmental characteristics.

The design parameters are so selected as to provide enhanced stability, reliability and life characteristics, low loss and close tolerances, low temperature co efficient, high insulation resistances etc. completely protecting the basic well known inherent characteristics of Indian ruby mica.

Enquire Now
Download Technical Sheet

Product Information

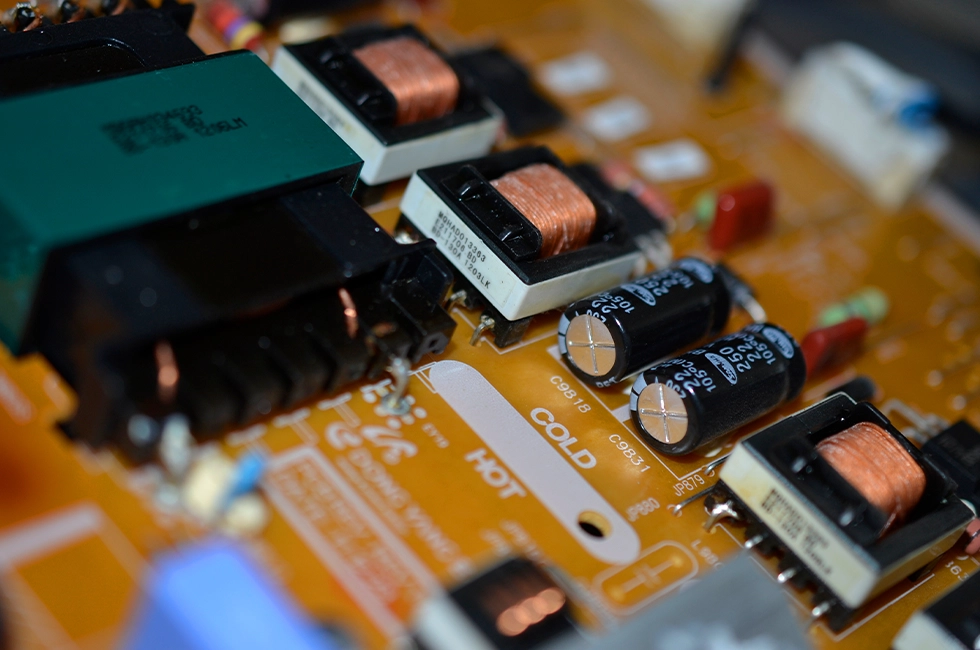

  • Radial Dipped: D05. D10, D15, D19, D20, D30, D42
  • Radial Moulded: Rm10, Rm20, Rm30, Rm40
  • Axial Moulded: Cm15, Cm20, Cm30, Cm35
  • Sintered Capacitors: type 49, 51, 273, 274 & 274 Etc.
Specification Details
Capacitance Range 1 pF to 100,000 pF
Working Voltage 50V – 500VDC, 1KV & 2KV on Request
Operating Temperature -40 to +85°C, -55 to +85°C, -55 to +125°C, -55 to +150°C
Capacitance Tolerance Minimum ± 0.5% or ±0.5pF (whichever is higher), 1% and above
Temperature Co-efficient -0 to +70, -20 to +100, -100 to +100, -200 to +200ppm/°C

JINDAL’S Mica Capacitors feature in a wide variety of circuit configurations such as; TUNING, TIMING, FILTERING, COUPLING, BY-PASS, PULSE FORMING, VOLTAGE BLOCKING.

In an ever-widening range of applications in; RF and Communication networks, Ground control & Space Flight Equipment, Medical electronics. High-grade Air-borne devices, Missile applications, Interfere Suppression Devices, Radars, Delay Lines, Telecommunications, Navigation aids, etc.

♦ Mica Capacitors are also used in Train protection wearing System, Railway Transmission System & Railway Signalling System.

    • Bharat Electronics Ltd.
    • Bharat Heavy Electricals Ltd.
    • Electronics Corporation Of India Ltd.
    • Hindustan Aeronautics Ltd.
    • BPL Telecom Pvt. Ltd.
    • Bharat Dynamics Ltd.
    • Kaynes Technologies
